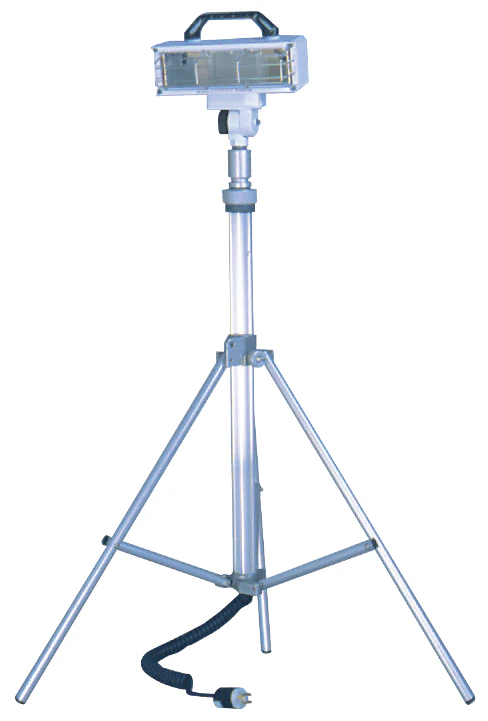

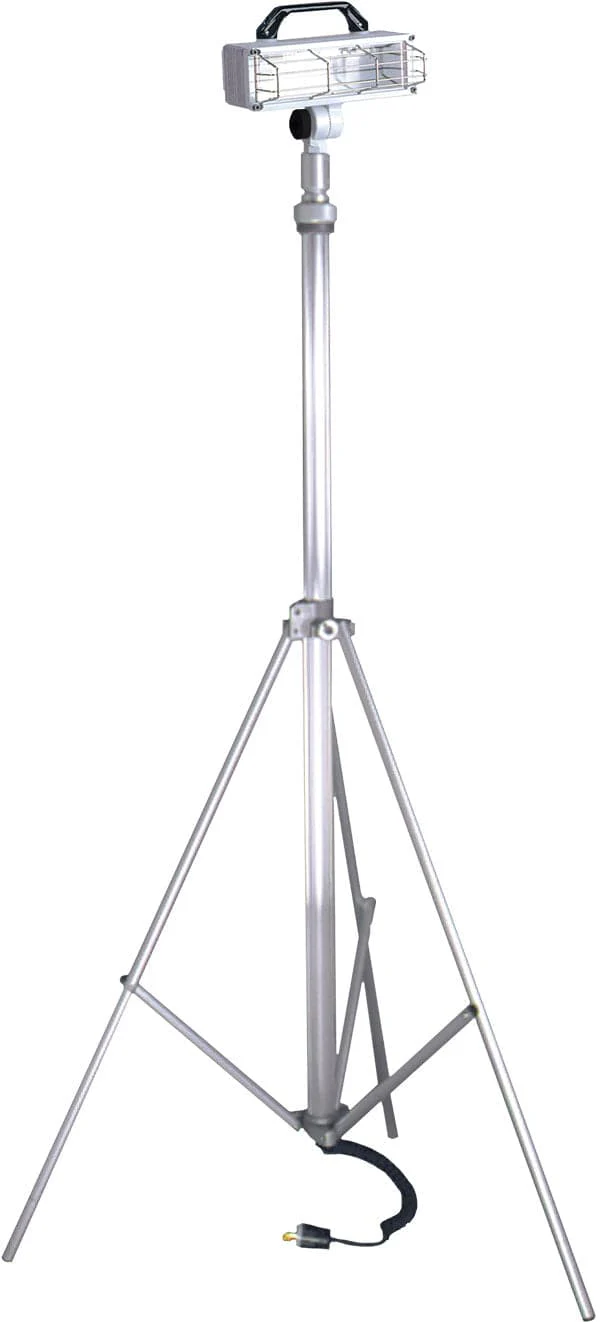

The Spectra LED TwistLock Telescopic Tripods combine Fire Research Corporation's proven portable tripod system with the powerful Spectra LED lamphead to provide elevated scene lighting for fire, rescue, EMS, utility, and emergency response operations. Designed for rapid deployment and maximum versatility, these tripod systems allow responders to position lighting above apparatus and ground-level obstructions, improving visibility across large incident scenes and work areas.

The Spectra LED lamphead utilizes a unique three-row LED configuration that combines flood and spot optics to deliver both broad work area illumination and long-distance visibility. Available in 15,000- or 20,000-lumen configurations, the lamphead is paired with FRC's exclusive TwistLock tripod technology, lightweight anodized aluminum construction, and extension heights of up to 12 feet to provide dependable elevated lighting in demanding emergency service environments.

Features

• Portable telescopic tripod scene lighting system
• Exclusive TwistLock locking mechanism operates in either direction
• Easy operation while wearing firefighting gloves
• Air-cushioned pole release prevents sudden lowering
• Helps reduce pinched fingers and equipment damage
• Simultaneous three-leg deployment for rapid setup
• Lightweight anodized aluminum construction
• Standard tripod weighs approximately 16 lbs.
• Cammed tightening knobs resist loosening from vibration
• Anti-chatter rubber leg covers provide quiet transport
• Compact folded footprint for apparatus storage
• Truck-mountable for on-vehicle and portable use
• Standard wire guard protection included
• Extends up to 12 feet in height
• Available in 15,000- or 20,000-lumen configurations
• Suitable for fire, rescue, EMS, utility, and industrial applications

Lighting Features

• Three-row LED configuration
• Top row utilizes flood LEDs for work area illumination
• Middle row utilizes focused spot LEDs for long-distance visibility
• Bottom row utilizes flood LEDs for expanded scene coverage
• Uniform flood and spot combination light pattern
• Slimmest LED profile in the industry
• Instant-on operation at full brightness
• LED life rating of 50,000 hours
• Innovative cooling fins improve efficiency and performance
• Available in 15,000- or 20,000-lumen outputs

Tripod Features

• Anodized aluminum pole construction
• Exclusive patented TwistLock locking system
• Air-cushioned pole lowering system
• Simultaneous leg deployment design
• Anti-chatter rubber leg covers
• Cammed tightening knobs
• Standard wire guard included
• Truck-mountable design
• Maximum extended height of up to 12 feet

Specifications

• Manufacturer: Fire Research Corporation
• Product Series: Spectra LED
• Product Type: Telescopic Tripod Scene Light System
• Pole Material: Anodized Aluminum
• Locking Mechanism: Patented TwistLock System
• Maximum Extension Height: Up to 12 ft.
• Standard Tripod Weight: Approximately 16 lbs.
• Available Light Outputs:
• 15,000 Lumens
• 20,000 Lumens
• LED Configuration:
• Flood LEDs (Top Row)
• Spot LEDs (Middle Row)
• Flood LEDs (Bottom Row)
• LED Life Rating: 50,000 Hours
• Cooling System: Integrated Cooling Fins

Available Models

• Model 600 (Full Size)
• Standard tripod configuration
• Supplied with NEMA L5-15 three-prong TwistLock plug
• Overall height with lamphead retracted: 72"

• Model 656 (Medium)
• Compact tripod design
• Approximately 14" shorter overall length than Model 600

• Model 642 (Small)
• Most compact tripod design
• Approximately 14" shorter overall length than Model 600

Note: The Spectra LED TwistLock Telescopic Tripods combine elevated lighting capability, rapid deployment, and advanced flood/spot LED optics to deliver up to 20,000 lumens of bright, uniform illumination for emergency response, utility, and industrial applications.
