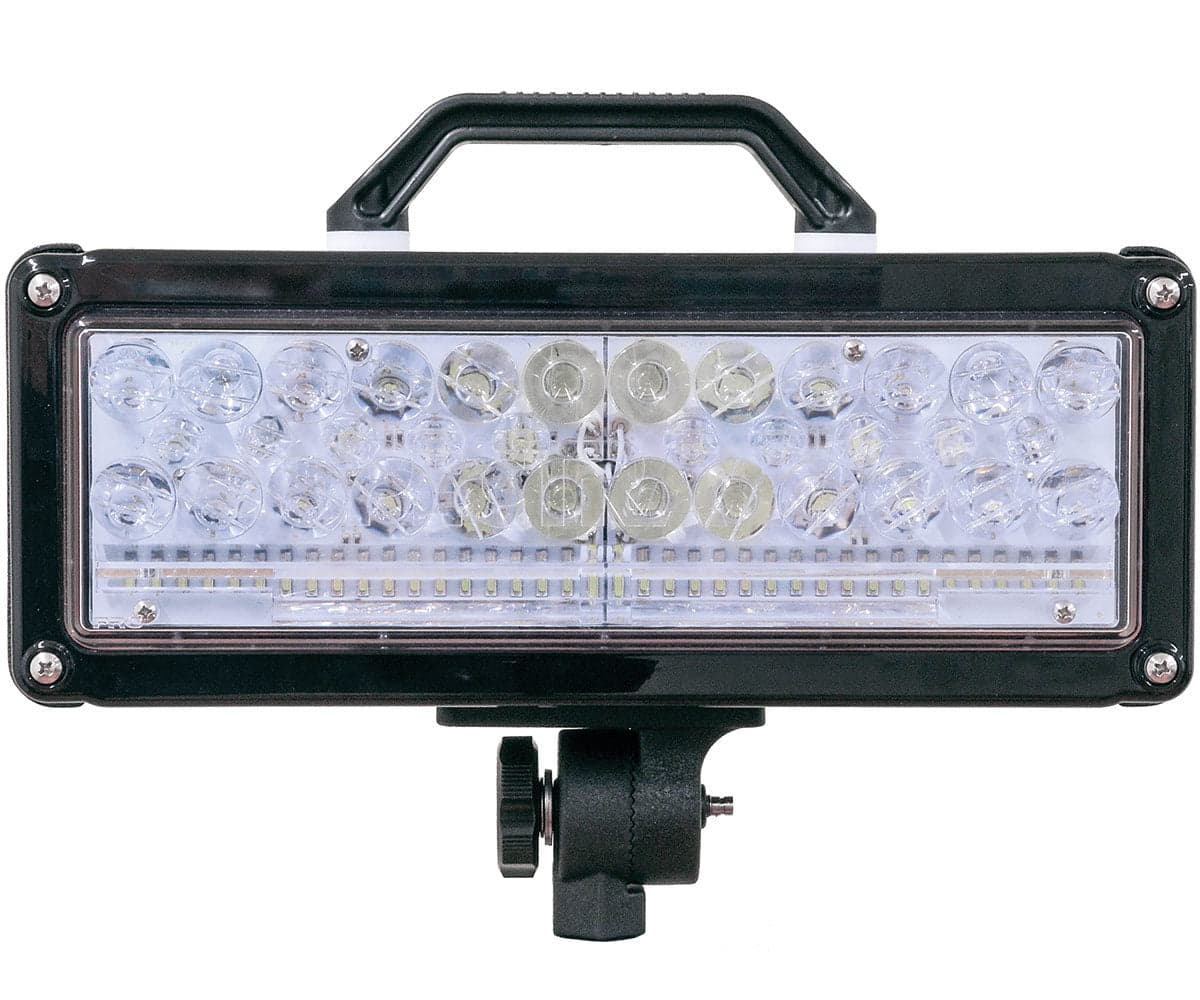

The Spectra HR LED Fixed Side Mount combines Fire Research Corporation's advanced Spectra HR lighting technology with the rugged 580 fixed pedestal mounting system to provide powerful side-scene illumination for fire apparatus, rescue vehicles, and specialty response units. Designed for permanent vehicle installation, this system allows operators to direct high-output lighting exactly where it is needed while maintaining secure positioning during vehicle operation.

The 580 pedestal mount provides 450° of lamphead rotation and incorporates a self-adjusting friction brake to prevent unwanted movement. The Spectra HR lamphead utilizes a unique dual-zone optical system that simultaneously illuminates both elevated structures and ground-level work areas. Producing 28,000 lumens of bright white light, the system provides exceptional scene coverage without requiring lamp adjustment, helping improve visibility, safety, and operational efficiency during emergency incidents.

Features

• Fixed side-mounted scene light system
• 580 pedestal mount with side-mount bracket
• Lamphead rotates up to 450°
• Self-adjusting friction brake prevents unwanted rotation
• Produces 28,000 lumens of bright white light
• Dual-zone lighting system illuminates both vertical and ground-level work areas
• No lamp adjustment required for optimal scene coverage
• Upper lens group projects wide beams at multiple angles
• Lower lens group illuminates the ground area in front of the apparatus
• 72 ultra-bright white LEDs total
• 34 LEDs dedicated to upper lighting zone
• 38 LEDs dedicated to lower lighting zone
• Adjustable pivoting mounting arm
• Reinforced knurled locking knob for secure positioning
• Sure-Grip molded handle remains cool to the touch
• Ideal for fire apparatus, rescue vehicles, and specialty response units
• Available with or without integrated switching

Specifications

• Manufacturer: Fire Research Corporation
• Product Series: Spectra HR LED
• Product Type: Fixed Side Mount Scene Light
• Mount Style: 580 Fixed Pedestal with Side-Mount Bracket
• Rotation: 450°
• Rotation Control: Self-Adjusting Friction Brake
• Light Output: 28,000 Lumens
• LED Configuration:
• 34 LEDs – Upper Lens Group
• 38 LEDs – Lower Lens Group
• Total LEDs: 72
• Lamphead Dimensions:
• Width: 14" (355 mm)
• Depth: 3.75" (95 mm)
• Height: 5.375" (137 mm)
• Available Voltages:
• 12/24 VDC
• 120/240 VAC
• Switch Options:
• With Switch
• Without Switch
• Mounting Bracket Size:
• Spectra HR: 2.75"

Lighting Design

• Upper Group:
• Projects wide beams at multiple angles
• Illuminates building faces, elevated work areas, and upper-story operations

• Lower Group:
• Illuminates the ground area directly in front of the apparatus
• Improves visibility around personnel, equipment, and hazards

Note: The Spectra HR LED Fixed Side Mount combines a rugged 450° rotating pedestal mount with FRC's advanced dual-zone optical technology, providing simultaneous building-face and ground-level illumination for enhanced scene visibility and operational effectiveness.
