The RADIANT ECO LED TwistLock Telescopic Poles combine Fire Research Corporation's rugged telescoping pole systems with the efficient and versatile RADIANT ECO LED lamphead to provide elevated scene lighting for fire apparatus, rescue vehicles, utility fleets, and specialty response units. Designed to place light above apparatus obstructions and expand scene coverage, these telescopic pole systems provide responders with reliable illumination that can be positioned exactly where it is needed.

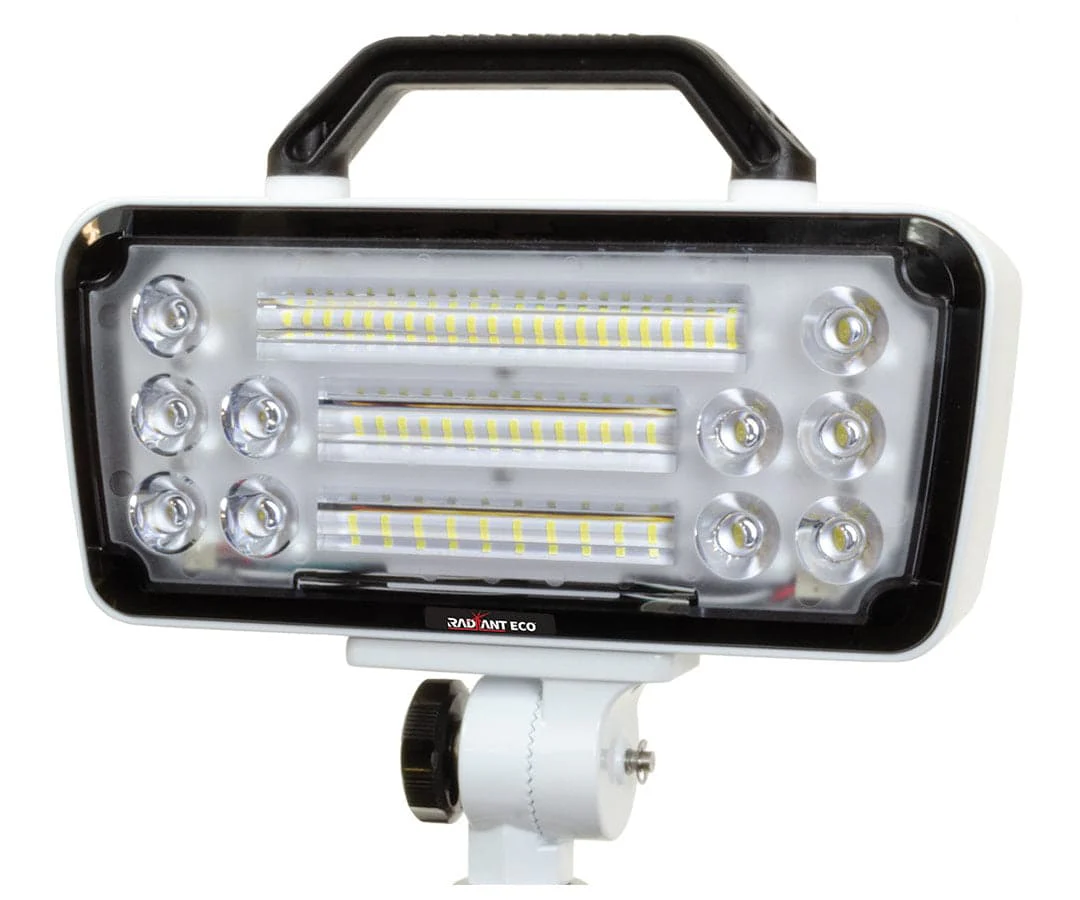

The RADIANT ECO LED lamphead delivers 15,000 lumens of bright white light through a modern no-bezel optical design. Available with asymmetrical or symmetrical lens configurations, the lamphead can be optimized for pole-mounted scene lighting or tower-style illumination applications. Combined with FRC's patented TwistLock telescopic pole technology, the system offers 360° rotation, secure positioning, maintenance-free operation, and exceptional durability for demanding emergency service environments.

Features

• Elevated telescopic pole scene lighting system
• Produces 15,000 lumens of bright white light
• Modern no-bezel lens design
• Available with asymmetrical or symmetrical lens configurations
• Instant-on full-intensity illumination
• FRC Sure Grip Handle for easy positioning
• Lifetime warranty on lamphead
• Suitable for fire, rescue, EMS, utility, and industrial applications
• Available on FRC telescopic pole systems

Lighting Features

• 15,000 lumens of bright white illumination
• No-bezel lens design maximizes usable light output
• Asymmetrical lens optimized for pole-mounted scene lighting
• Symmetrical lens optimized for tower-mounted applications
• Wide-area scene illumination with efficient light distribution
• Instant-on operation with no warm-up time

Pole Features

• Anodized aluminum pole construction
• Maintenance-free design for extended service life
• All poles rotate 360° for maximum positioning flexibility
• Exclusive patented TwistLock locking mechanism
• TwistLock operates in either direction
• Locking mechanism cannot jam or be over-tightened
• No protruding handles to snag gear or straps
• Knurled locking surface provides a secure grip
• No metal-to-metal contact reduces wear on pole components
• Standard four-foot retractable wiring cord on extension poles
• Grooved outer pole surfaces improve handling and grip
• Adjustable lamphead elevation with pivoting arm and knurled adjustment knob
• Designed for long-term durability in emergency service environments

Grab Handle Features

• Standard on Models 530, 540, and 542
• Provides secure operation while wearing heavy gloves
• NFPA-compliant handrail design
• Grooved surface improves grip and control

Specifications

• Manufacturer: Fire Research Corporation
• Product Series: RADIANT ECO LED
• Product Type: Telescopic Pole Scene Light System
• Pole Material: Anodized Aluminum
• Pole Rotation: 360°
• Locking Mechanism: Patented TwistLock System
• Wiring: Four-Foot Retractable Cord (Standard Models)
• Light Output: 15,000 Lumens
• Lens Options:
• Asymmetrical
• Symmetrical
• Handle Type: FRC Sure Grip Handle
• Warranty: Lifetime Warranty

Available Pole Models

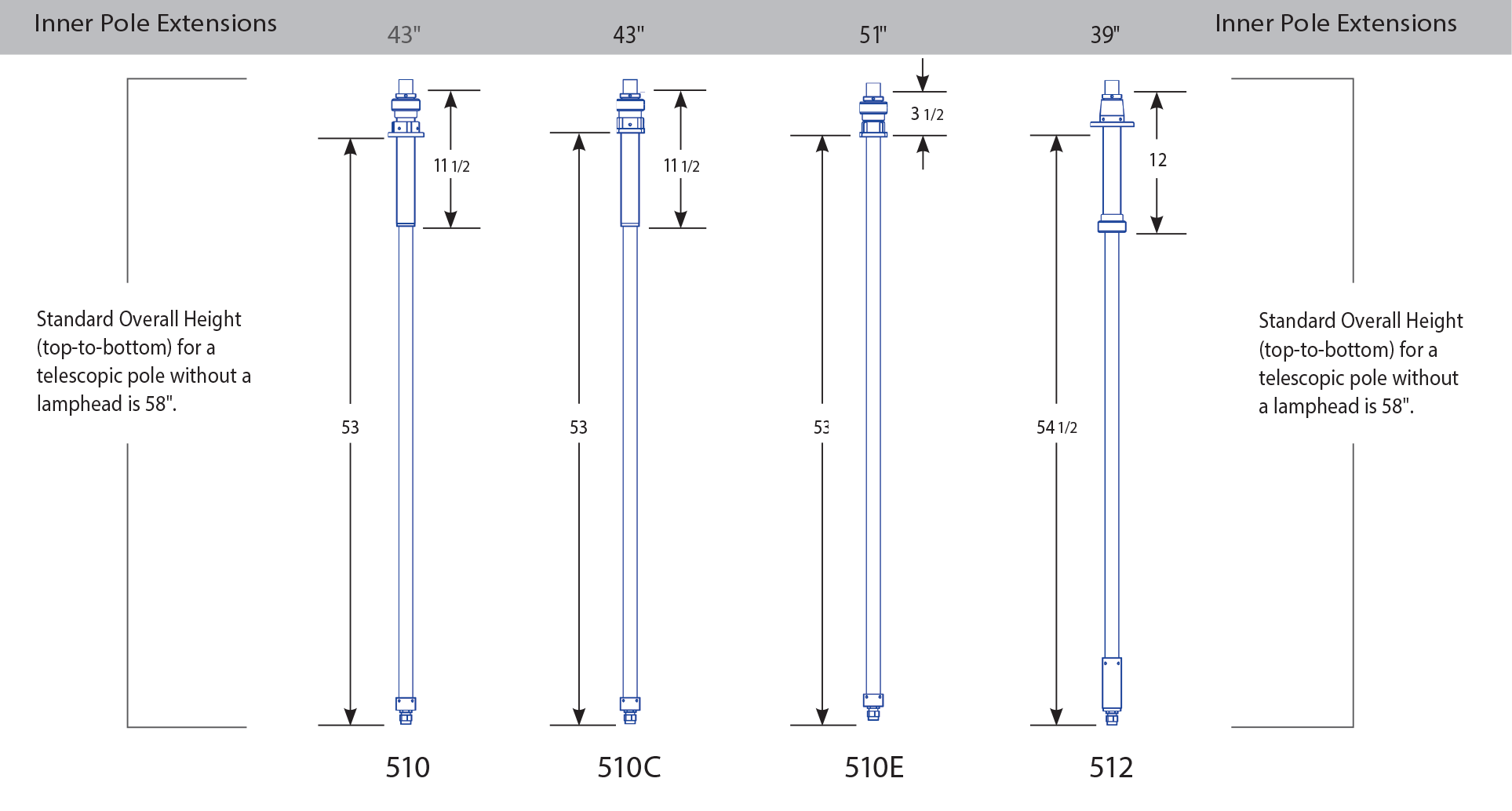

• Model 510 – Top Mount, Pull-Up Telescopic Pole
• Model 510C – Model 510 with Square Flange Option
• Model 510E – Model 510 with Square Flange for 3" Extrusion Mounting
• Model 512 – Through-the-Roof, Push-Up Telescopic Pole

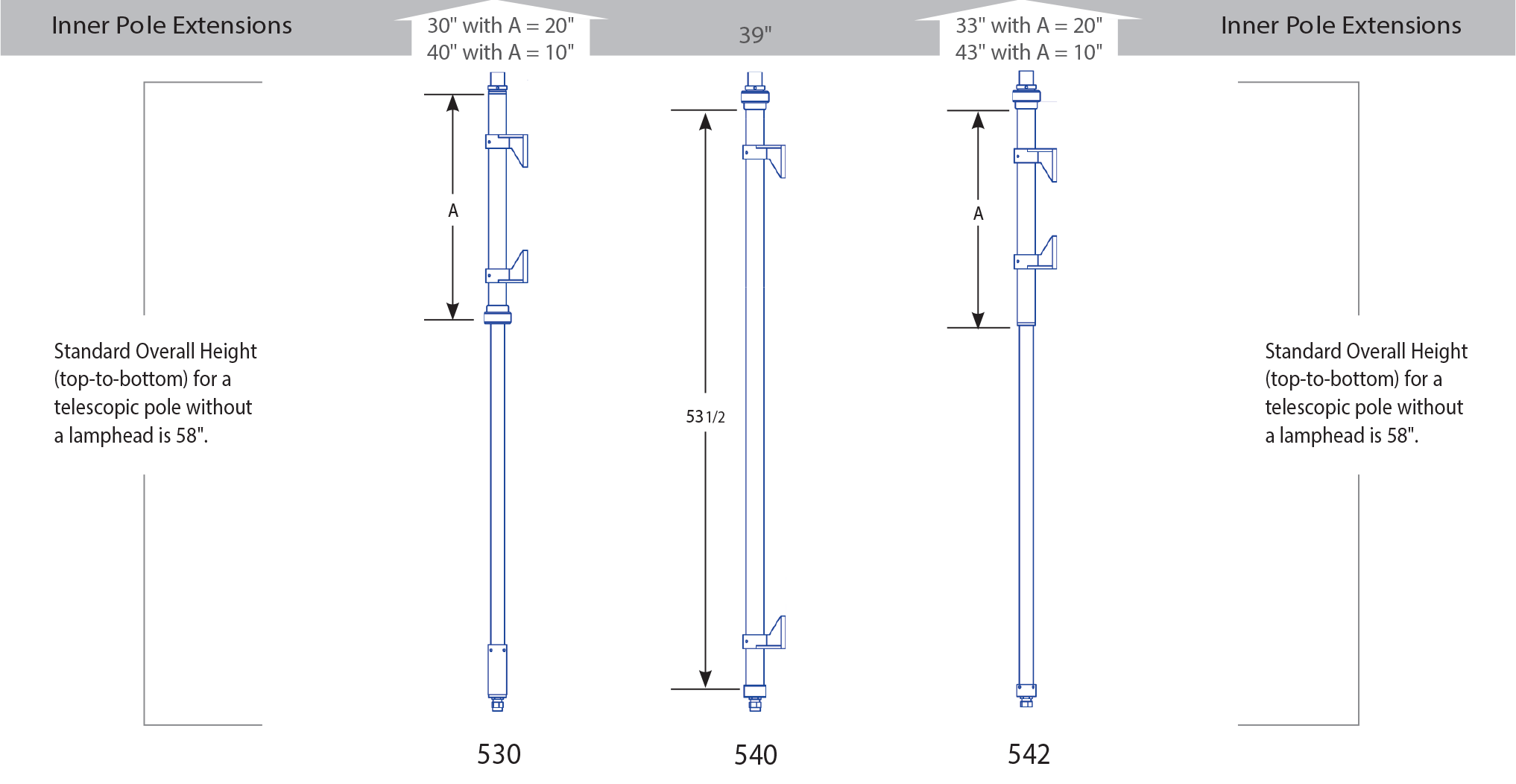

• Model 530 – Side Mount, Push-Up Telescopic Pole

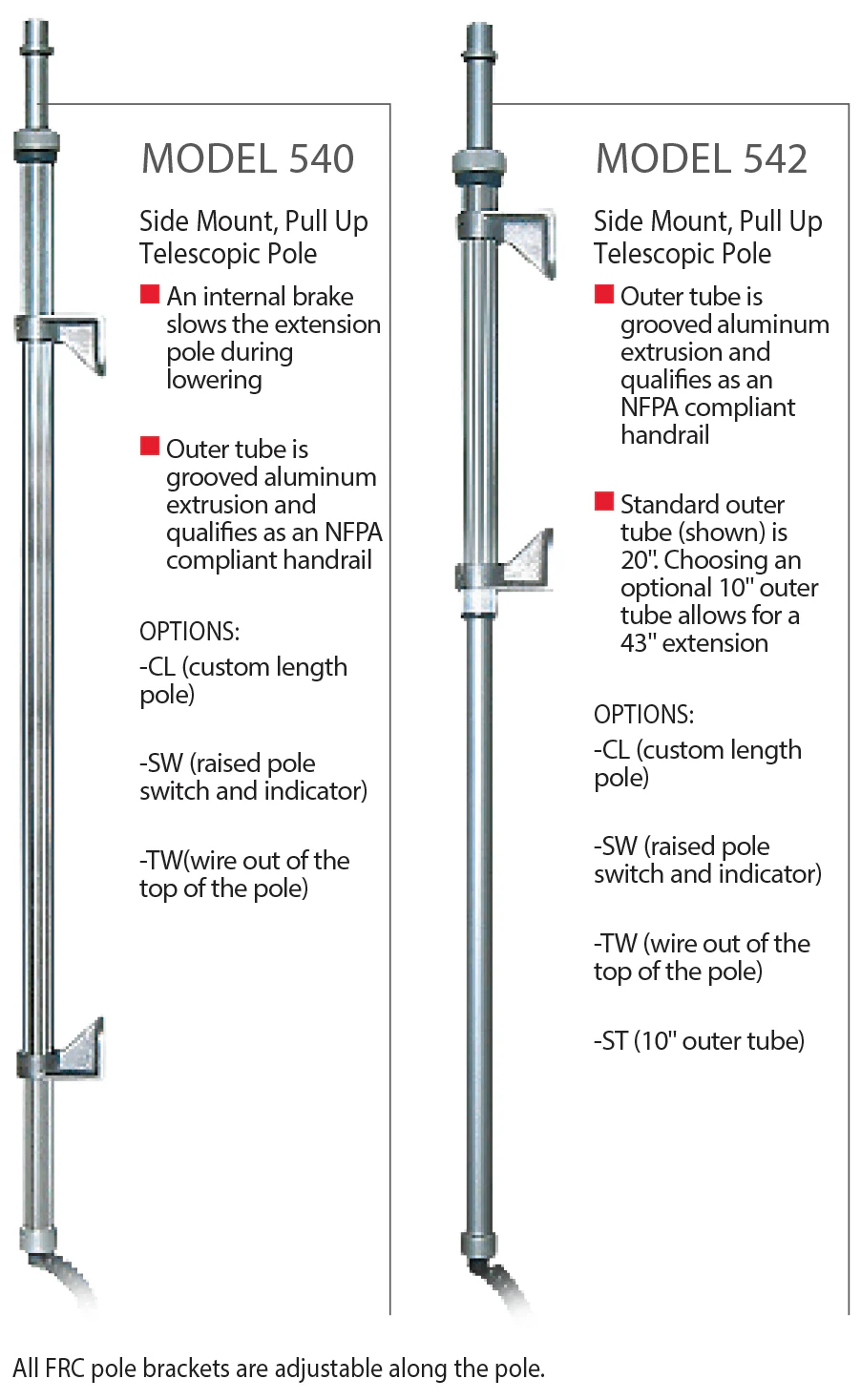

• Model 540 – Side Mount, Pull-Up Telescopic Pole
• Model 542 – Side Mount, Short Pull-Up Telescopic Pole

Note: The RADIANT ECO LED TwistLock Telescopic Pole system combines elevated scene lighting, durable anodized aluminum construction, and FRC's proven TwistLock technology to provide dependable illumination and flexible positioning for emergency response and specialty vehicle applications.
