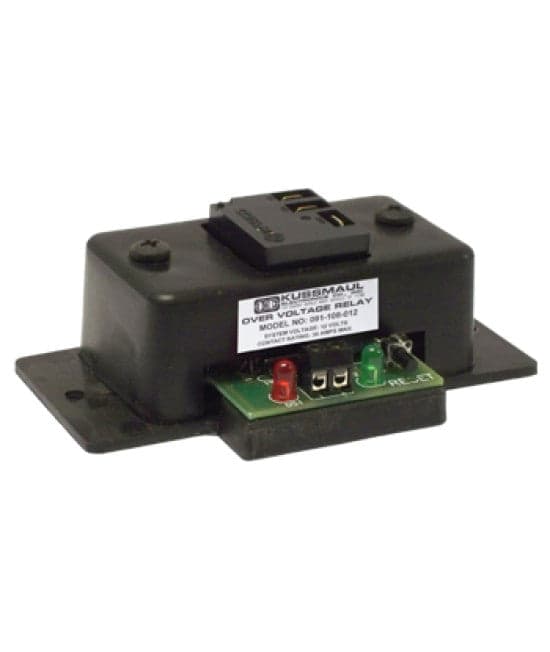

The Kussmaul Over Voltage Relay provides continuous battery system voltage monitoring to help protect fire apparatus, ambulances, rescue vehicles, command vehicles, and other specialty vehicle electrical systems from potentially damaging overvoltage conditions. Designed to detect excessive charging voltage, the relay can activate a connected alarm or warning circuit to alert operators of conditions that could lead to battery overcharging, overheating, or boil-over.

The Over Voltage Relay continuously monitors battery voltage and is factory set to activate when voltage reaches 17 volts. When an overvoltage condition is detected, the internal relay operates to activate the connected warning or control circuit. The relay resets when system voltage drops to 14 volts. The activation and reset voltage thresholds can be adjusted for specific vehicle electrical system requirements. Heavy-duty 30-amp relay contacts with normally open and normally closed connections provide flexibility for integrating alarms, indicators, and other electrical control circuits.

Features

• Continuously monitors vehicle battery system voltage
• Detects potentially damaging overvoltage conditions
• Helps warn operators of battery overcharging and potential boil-over conditions
• Factory set to activate at 17 volts
• Relay resets when battery voltage drops to 14 volts
• Activation and reset voltage thresholds can be adjusted for specific applications
• Heavy-duty 30-amp relay contacts provide dependable circuit control
• Normally open and normally closed contacts provide flexible wiring configurations
• Relay can activate compatible audible alarms, visual indicators, or control circuits
• Low current consumption minimizes electrical system load
• Compact design simplifies installation in vehicle electrical systems
• Ideal for fire apparatus, ambulances, rescue vehicles, command vehicles, and specialty vehicle electrical systems
• Backed by a 3-year manufacturer's warranty

Specifications

• Manufacturer: Kussmaul Electronics
• Product Type: Over Voltage Monitoring Relay
• Product Code: 091-108-012
• Monitoring Function: Continuous Battery System Voltage Monitoring
• Over Voltage Detection: Yes
• Factory Activation Set Point: 17 Volts
• Factory Reset Set Point: 14 Volts
• Voltage Set Points: Adjustable
• Relay Contact Rating: 30 Amps
• Relay Contacts: Normally Open and Normally Closed
• Input Current – Relay Off: 0.015 Amps
• Input Current – Relay On: 0.08 Amps
• Weight: 0.25 lbs.
• Warranty: 3-Year Manufacturer's Warranty
