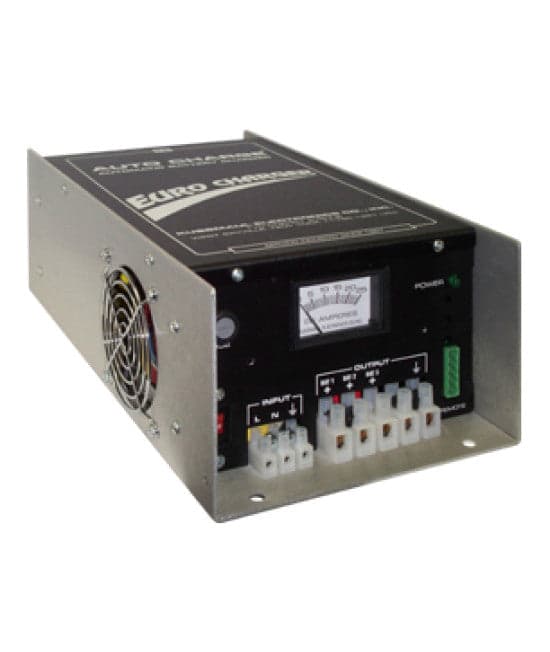

The Kussmaul Euro Charger III is a fully automatic, triple-output battery charger designed to charge and maintain three separate 12-volt battery banks while supporting continuous parasitic DC loads. Engineered to meet CE requirements, the Euro Charger III provides an 18-amp total charging output and can be installed directly on fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles.

The charger uses precise voltage regulation to maintain consistent charging output despite changes in connected loads or AC input voltage. Active current limiting prevents charger output from exceeding its rated capacity when charging deeply discharged batteries or if the vehicle is started while connected to the charging system. The Euro Charger III automatically float charges connected batteries while supporting onboard equipment such as mobile data terminals, radios, hand lights, and other parasitic DC loads.

A front-panel ammeter provides convenient monitoring of total charger output current. Two optional remote display configurations are available: a two-LED indicator that displays AC power and charging output status, or a triple bar graph display that provides individual voltage status monitoring for each battery bank.

Built with a heavy-duty aluminum enclosure, protective front panel plate, and wire strain relief, the Euro Charger III is designed for demanding vehicle installations and supports 120/230 VAC, 50/60 Hz input power.

Features

• Fully automatic battery charger for three separate battery banks
• Triple-output charging system with 18-amp total output capacity
• Automatically float charges connected batteries and maintains them at full charge
• Supports continuous parasitic DC loads while maintaining vehicle batteries
• Helps power mobile data terminals, radios, hand lights, and other onboard electrical equipment
• Precise voltage regulation maintains consistent charger output despite load or AC input voltage variations
• Active current limiting prevents charger output from exceeding its rated capacity
• Provides charging protection when batteries are deeply discharged or the vehicle is started while connected to the charger
• Front-panel ammeter displays total charger output current
• Optional two-LED remote display provides AC power and charging output status indication
• Optional triple bar graph remote display provides individual voltage monitoring for all three battery banks
• Supports 120/230 VAC, 50/60 Hz input power
• Heavy-duty aluminum enclosure for demanding vehicle installations
• Protective front panel plate helps protect charger components
• Integrated wire strain relief supports secure electrical connections
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• Meets CE requirements
• 3-year warranty

Specifications

• Manufacturer: Kussmaul Electronics
• Product Type: Automatic Triple-Output Vehicle Battery Charger
• Battery Banks Supported: 3
• Charger Configuration: Triple Output
• Total Charger Output Current: 18 Amps
• Output Voltage: 12 VDC
• AC Input Voltage: 120/230 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 4.7 Amps at 120 VAC / 2.4 Amps at 230 VAC
• Input Fuse: 5 Amps, Fast Acting
• Output Fuse: 30 Amps
• Output Fuse Part Number: 090-0030-0
• Charge Indicator: 0 to 25 Amp Front-Panel Ammeter
• Charging Operation: Automatic Float Charging
• Current Limiting: Active Current Limiting
• Remote Display Options: Two-LED Indicator or Triple Bar Graph Display
• Enclosure Construction: Heavy-Duty Aluminum
• CE Compliance: Meets CE Requirements
• EV Series: No
• Weight: 22 lbs.
• Warranty: 3 Years
