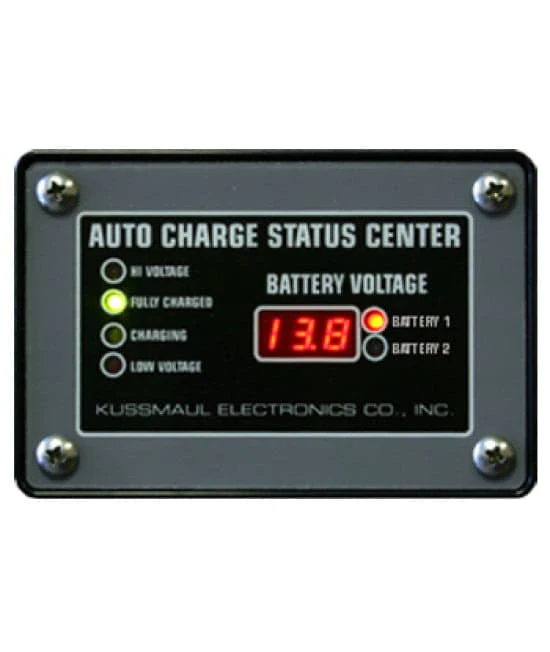

The Kussmaul Auto Charge Dual Status Center 2 1/2 Digit is a universal vehicle-mounted battery monitoring display designed for vehicles equipped with dual 12-volt battery systems. The Status Center continuously monitors Battery 1 and Battery 2, providing dedicated LED battery condition indicators for both battery banks and automatically toggling the digital voltage display between the two batteries.

A 3-digit digital display shows battery voltage with an accuracy of 100 millivolts, while LED indicators identify high voltage, fully charged, charging, and low voltage conditions for each battery. When a high- or low-voltage condition is detected, the corresponding LED flashes to provide operators with a clear visual warning of a potential vehicle electrical system issue.

Designed for exterior vehicle mounting, the Status Center features a weatherproof enclosure and fits standard Kussmaul indicator panel cutouts. The Auto Charge Dual Status Center provides convenient monitoring of both battery banks from a single display for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles.

Features

• Universal battery monitoring display for dual-battery vehicle systems
• Continuously monitors Battery 1 and Battery 2
• Dedicated LED battery condition indicators for both battery banks
• Digital voltage display automatically toggles between Battery 1 and Battery 2
• 3-digit digital display provides battery voltage readings
• Voltage measurement accuracy of 100 millivolts
• LED indicators provide quick visual identification of battery condition
• Displays high voltage, fully charged, charging, and low voltage conditions
• High- and low-voltage LEDs flash when abnormal voltage conditions are detected
• Weatherproof enclosure for exterior vehicle mounting
• Fits standard Kussmaul indicator panel cutouts
• Operates directly from the vehicle's 12 VDC battery system
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty

Specifications

• Manufacturer: Kussmaul Electronics
• Product Type: Dual-Battery Digital Voltage and Status Display
• Battery Banks Monitored: 2
• Battery Displays: Battery 1 and Battery 2
• Display Type: 3-Digit Digital Display with LED Status Indicators
• Input Voltage: 12 VDC from Battery
• Voltage Accuracy: 100 Millivolts
• High Voltage Indication: 14.82 VDC and Above
• Fully Charged Indication: 13.08 to 14.82 VDC
• Charging Indication: 12.84 to 13.08 VDC
• No LED Indication: 12.30 to 12.84 VDC
• Low Voltage Indication: 12.30 VDC and Below
• Enclosure: Weatherproof
• Mounting Compatibility: Standard Kussmaul Indicator Panel Cutouts
• Weight: 0.25 lbs.
• Warranty: 3 Years
