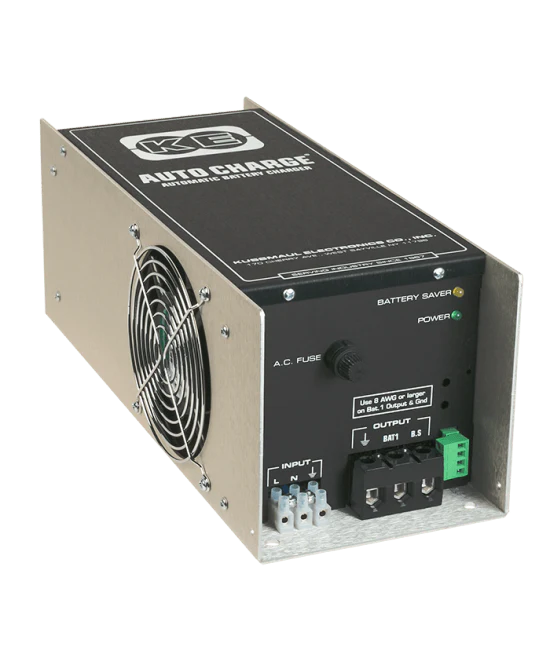

The Kussmaul Auto Charge 35/10 is a fully automatic battery charger and Battery Saver system designed for emergency and specialty vehicles equipped with a single 12-volt battery bank. Providing 45 amps of total system output capacity, the Auto Charge 35/10 combines a high-output 35-amp battery charger with a separate 10-amp Battery Saver output to maintain the vehicle battery while supporting auxiliary equipment such as rechargeable hand lights and radios.

A patented built-in sensing circuit checks battery voltage 120 times per second and automatically compensates for voltage drop in the charging wires. This allows the charger to provide rapid battery recovery while maintaining proper charging voltage and helping prevent overcharging.

The integrated 10-amp Battery Saver automatically disconnects connected accessory loads from the vehicle battery when the charger is energized and powers them from its internal power supply. This helps prevent auxiliary equipment from discharging the vehicle battery while the apparatus is connected to shore power. Automatic overload current limiting protects the Battery Saver circuit when connected loads exceed its rated capacity.

A remote bar graph display is included for convenient monitoring of battery charge status. Front-panel indicators provide visual notification when AC input power is applied and when the Battery Saver circuit is overloaded. Built with a heavy-duty aluminum enclosure, the Auto Charge 35/10 is designed to withstand demanding vehicle-mounted applications.

Features

• Fully automatic battery charger and Battery Saver system for a single 12-volt battery bank
• 45-amp total system output capacity
• 35-amp battery charging output
• Separate 10-amp Battery Saver output for auxiliary electrical loads
• Automatic float charging operation regulates output to the connected battery bank
• Patented sensing circuit checks battery voltage 120 times per second
• Automatically compensates for voltage drop in charging wires
• Provides rapid battery recharge while helping prevent overcharging
• Battery Saver automatically disconnects accessory loads from the vehicle battery when the charger is energized
• Powers connected auxiliary equipment from the Battery Saver internal power supply while the vehicle is in station
• Helps prevent rechargeable hand lights, radios, and other accessory loads from discharging the vehicle battery
• 10-amp Battery Saver output includes automatic overload current limiting
• Front-panel AC power indicator shows when input power is applied
• Battery Saver overload indicator alerts operators when connected loads exceed 10 amps
• Includes remote bar graph display for convenient battery charge status monitoring
• Heavy-duty aluminum enclosure designed for demanding vehicle-mounted installations
• Compatible with Kussmaul Super Auto Eject Deluxe Cover 091-55-234-XXX with Bar Graph Display
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• Battery Saver output is not recommended for powering highly sensitive electronic loads
• 3-year warranty

Specifications

• Manufacturer: Kussmaul Electronics
• Product Type: Automatic Single-Bank Battery Charger with Battery Saver
• Charger Configuration: Single Battery Bank
• Total System Output Capacity: 45 Amps
• Battery Charger Output Voltage: 12 VDC
• Battery Charger Output Current: 35 Amps
• Battery Saver Capacity: 10 Amps
• Charging Profile: Float
• Battery Voltage Sampling Rate: 120 Times Per Second
• Voltage Drop Compensation: Yes
• AC Input Voltage: 120 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 10 Amps
• Input Fuse: 12 Amps, Fast Acting
• Output Fuse: 80 Amps
• Battery Saver Protection: Automatic Overload Current Limiting
• Power Indicator: Indicates When AC Input Power Is Applied
• Battery Saver Overload Indicator: Indicates When Battery Saver Load Exceeds 10 Amps
• Included Charge Indicator: Remote Bar Graph Display
• Remote Display Included: Yes
• Parasitic Load Compensation: No
• Low-Profile Design: No
• Enclosure Construction: Heavy-Duty Aluminum
• Sensitive Electronic Load Compatibility: Battery Saver Not Recommended for Highly Sensitive Electronic Loads
• EV Series: No
• Weight: 22 lbs.
• Warranty: 3 Years
