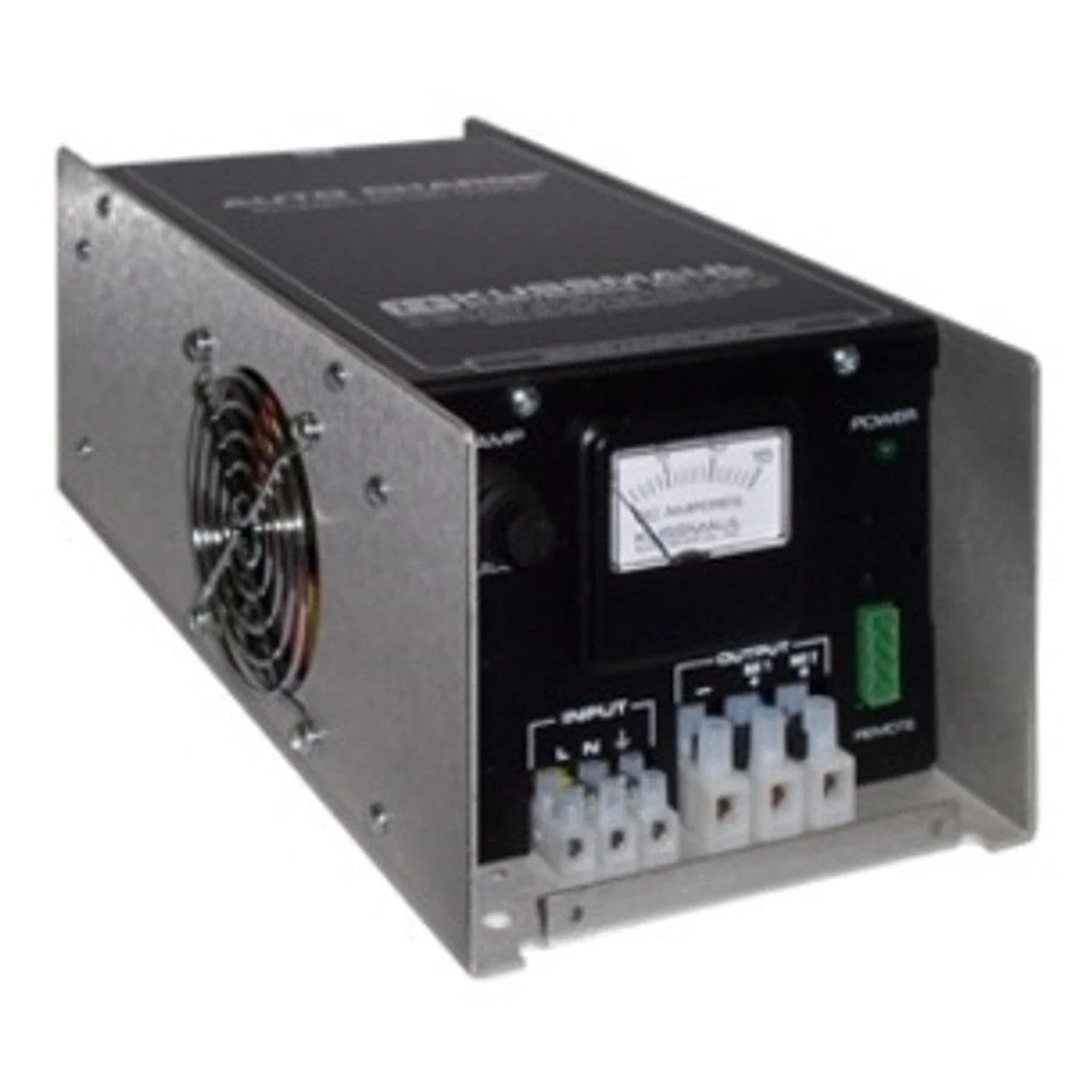

The Kussmaul Auto Charge 12 DV Single Battery Charger is a fully automatic 12-volt battery charger designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicles equipped with a single battery bank. Delivering up to 12 amps of charging output, the Auto Charge 12 DV features selectable 120V or 240V AC input operation, making it well suited for vehicles operating in areas with different available shore power voltages.

A patented electronic sensing circuit checks the battery voltage 120 times per second to compensate for voltage drop in the charging wires. This allows the charger to accurately detect the true battery voltage without requiring external sense wires, helping provide rapid battery recovery while preventing overcharging and excessive water loss.

The charger operates automatically and regulates charging output according to battery condition. Once the battery reaches full charge, charging stops to prevent continuous overcharging. A front-mounted ammeter provides convenient monitoring of charger output current, while optional vehicle-mounted remote indicators allow charging status to be monitored from an accessible location on the apparatus.

Built with a heavy-duty aluminum enclosure, protective front panel plate, and wire strain relief, the Auto Charge 12 DV is designed to withstand the demanding conditions encountered in vehicle-mounted emergency equipment installations.

Features

• Fully automatic battery charger for single 12-volt battery bank systems
• 12-amp charging output capacity
• Front-panel selector switch allows operation from 120V or 240V AC input power
• Compatible with 50/60 Hz AC power systems
• Patented electronic sensing circuit checks battery voltage 120 times per second
• Compensates for voltage drop in charging wires for accurate battery charging
• Electronic voltage sensing eliminates the need for external sense wires
• Automatic charging operation regulates output according to battery condition
• Charging stops when the battery reaches full charge to help prevent overcharging and water boil-off
• Float charging profile for reliable battery maintenance
• Front-mounted ammeter displays charger output current
• Optional vehicle-mounted remote indicators available
• Current limiting helps protect the charger when charging deeply discharged batteries or supporting electrical loads
• Heavy-duty aluminum enclosure designed for demanding vehicle-mounted installations
• Protective front panel plate and wire strain relief provide additional durability
• Designed for fire apparatus, rescue vehicles, ambulances, and other emergency or specialty vehicle applications
• 3-year warranty

Specifications

• Manufacturer: Kussmaul Electronics
• Product Type: Fully Automatic Vehicle Battery Charger
• Charger Model: Auto Charge 12 DV
• Battery Bank Configuration: Single
• Output Voltage: 12 VDC
• Output Current: 12 Amps
• AC Input Voltage: Selectable 120/240 VAC
• Input Frequency: 50/60 Hz
• Maximum Input Current: 3 Amps at 120 VAC / 1.5 Amps at 240 VAC
• Input Fuse: 5 Amps, Fast Acting
• Output Fuse: 24 Amps
• Charge Indicator Range: 0 to 15 Amps
• Charging Profile: Float
• Voltage Sensing: Electronic; External Sense Lines Not Required
• Remote Display Included: Yes
• Remote Indicator Options: Available
• Parasitic Load Compensation: No
• Low-Profile Design: No
• Battery Saver Only: No
• EV Series: No
• Enclosure Construction: Heavy-Duty Aluminum Case with Protective Front Panel Plate and Wire Strain Relief
• Weight: 12 lbs.
• Warranty: 3 Years
