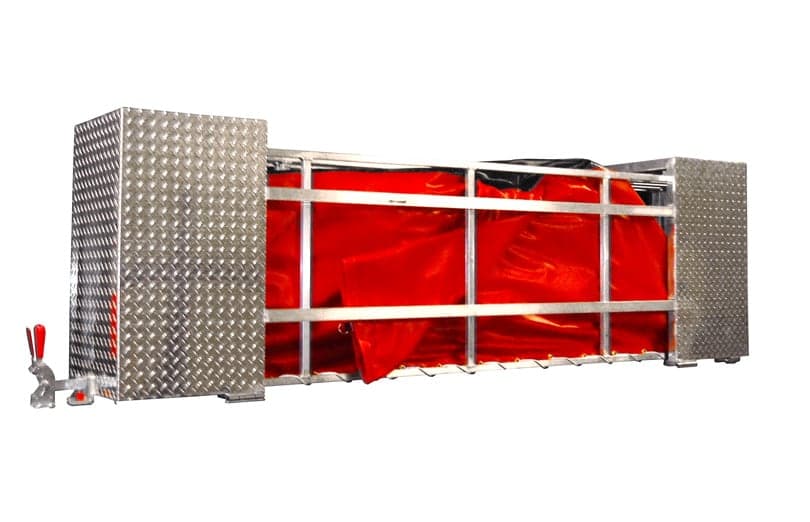

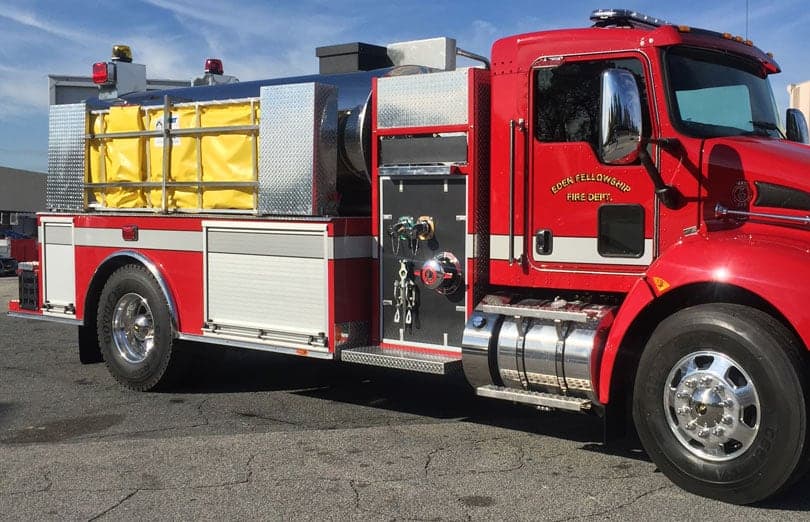

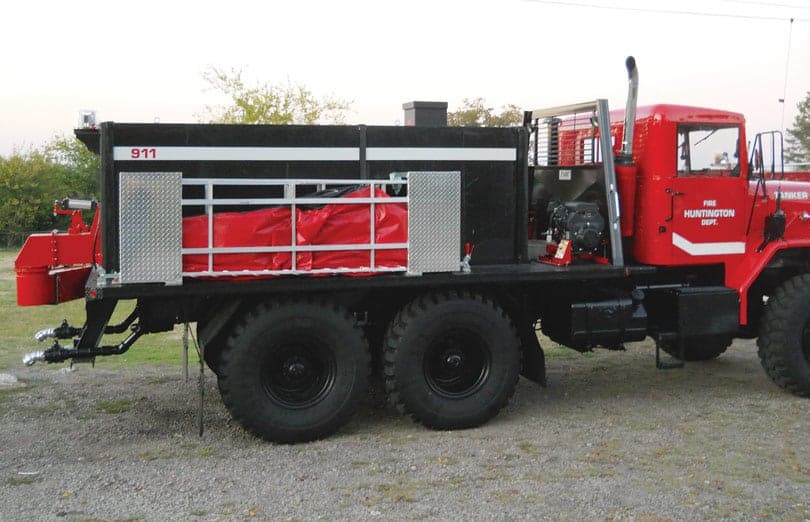

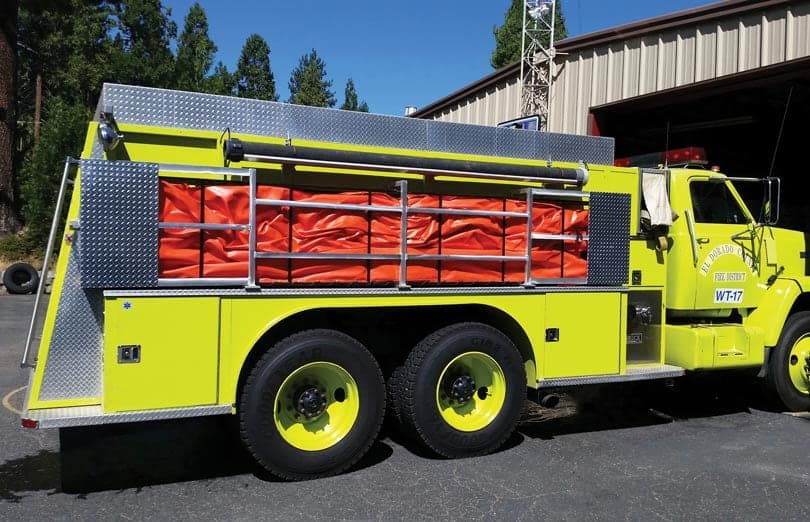

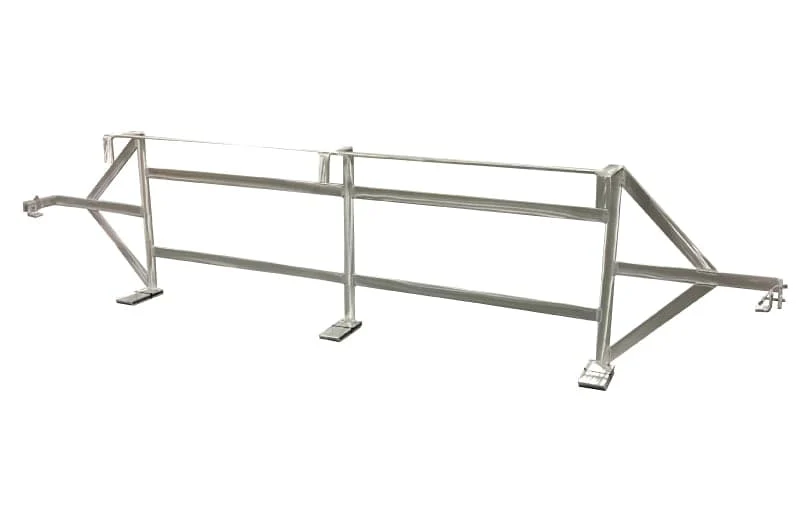

The Husky Portable Tank Rack provides a secure, convenient storage solution for folding frame tanks while allowing for fast deployment during emergency response. Designed for easy installation, these manually operated racks are available in either stainless steel or aluminum construction and securely mount portable tanks to tanker apparatus for safe transport and quick access when needed.

Built for durability and long service life, Husky Portable Tank Racks feature fully TIG-welded construction, stainless steel T-button handles or optional vertical toggle lock clamps, and an easy-access design that allows tanks to be quickly removed and redeployed. The racks bolt directly to the apparatus using pre-drilled mounting holes, making installation simple and efficient. Optional diamond plate windbreaks and custom sizing are also available to meet specialized apparatus requirements.

Features

• Designed for secure transport and quick deployment of folding frame tanks
• Available in stainless steel or lightweight aluminum construction
• Fully TIG-welded for maximum strength and durability
• Manually operated release mechanism
• Easy-access design allows tanks to be removed and deployed quickly
• Bolts directly to apparatus for fast, straightforward installation
• Stainless steel T-button handles or optional vertical toggle lock clamps
• Optional diamond plate windbreaks available
• Custom rack sizes available for specialized apparatus applications

Available Variants

Tank Sizes

• 1,000 Gallon
• 1,500 Gallon
• 2,100 Gallon
• 2,500 Gallon
• 3,000 Gallon
• 3,500 Gallon
• 4,000 Gallon
• 5,000 Gallon

Material Options

• Stainless Steel
• Aluminum

Standard Dimensions

Tank Size	Rack Dimensions	Approx. Weight
1,000 Gallon	104" × 12" × 32"	33 lbs.
1,500 Gallon	128" × 12" × 32"	35 lbs.
2,100 Gallon	140" × 12" × 32"	36 lbs.
2,500 Gallon	152" × 12" × 32"	42 lbs.
3,000 Gallon	164" × 12" × 32"	44 lbs.
3,500 Gallon	176" × 12" × 32"	45 lbs.
4,000 Gallon	188" × 12" × 32"	48 lbs.
5,000 Gallon	200" × 12" × 32"	50 lbs.

Specifications

• Manufacturer: Husky
• Product Type: Portable Folding Frame Tank Rack
• Compatible Tank Sizes: 1,000, 1,500, 2,100, 2,500, 3,000, 3,500, 4,000, and 5,000 Gallons
• Material Options: Stainless Steel or Aluminum
• Construction: Fully TIG-welded
• Operation: Manual release mechanism
• Handle Options: Stainless Steel T-button handles or optional vertical toggle lock clamps
• Mounting: Bolt-on installation with pre-drilled mounting holes
• Optional Features: Diamond plate windbreaks and custom rack dimensions available
