The Husky Aqua Tank Type II combines the strength of a rigid-frame portable water tank with the convenience of a lightweight, quick-assembly design. Engineered for rapid deployment during firefighting, emergency water storage, industrial operations, and municipal applications, the Aqua Tank Type II features a durable aluminum frame that snaps together without tools, allowing crews to set up the tank in just minutes.

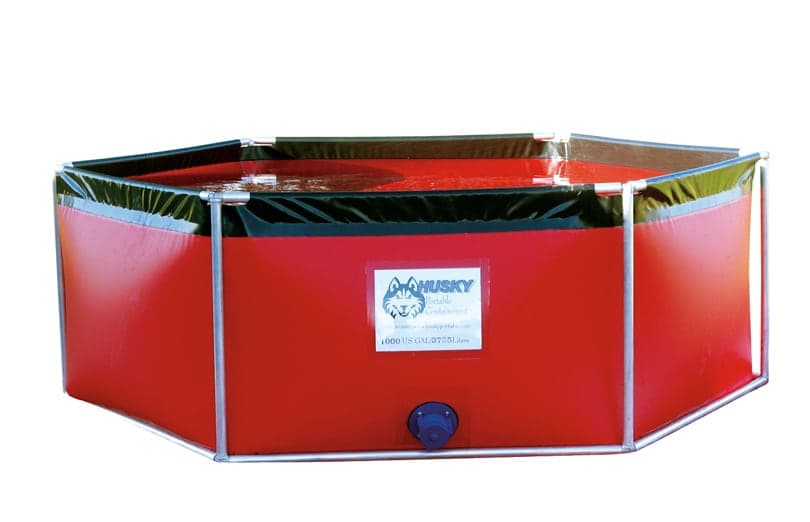

Constructed from 6061 aircraft-grade aluminum tubing, the Aqua Tank Type II uses slip-fit corner connections that securely lock the top and bottom rails into place once the liner is installed—eliminating the need for pins, wires, or special tools. Smaller 500- and 1,000-gallon models feature a hexagonal design, while 1,500- through 3,000-gallon models utilize an octagonal configuration for increased strength and capacity. The rigid top rails also allow hose lines to be draped directly over the tank without requiring a hose support stand. Every tank includes a convenient storage bag for easy transportation and compact storage.

Features

• Lightweight, quick-assemble rigid-frame portable water tank
• No tools required for assembly
• Slip-fit corner design eliminates pins and wire connections
• Constructed from aircraft-grade 6061 aluminum tubing
• Rigid top rails support hose lines without the need for a hose stand
• Hexagonal design on 500- and 1,000-gallon models

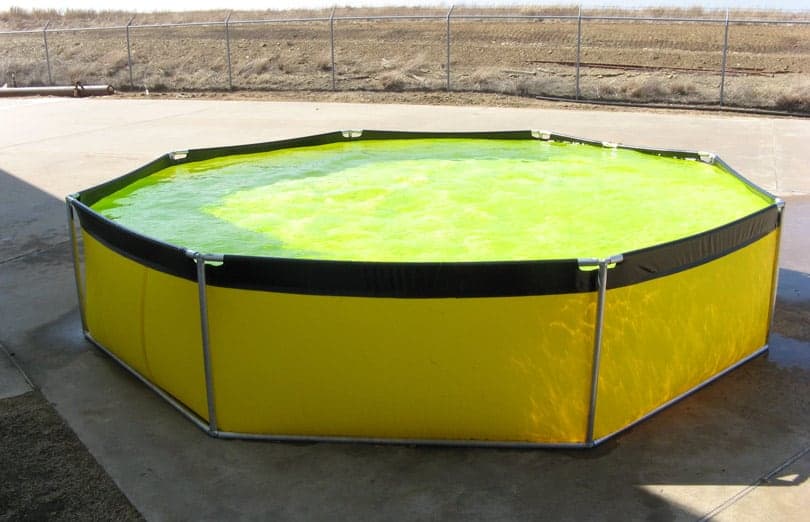

• Octagonal design on 1,500- through 3,000-gallon models
• Standard 2" NPT female rigid flange
• Optional fittings available to meet application requirements

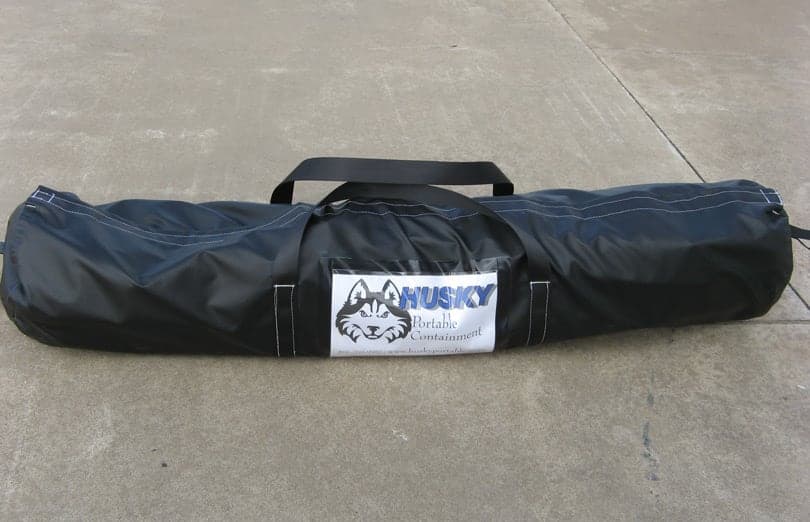

• Includes storage bag for transport and storage
• Custom sizes available

Available Capacities

• 100 Gallon
• 250 Gallon
• 500 Gallon
• 1,000 Gallon
• 1,500 Gallon
• 2,000 Gallon
• 2,500 Gallon
• 3,000 Gallon

Available Liner Materials

• 22 oz. Vinyl
• EXLON® 22 oz.
• XR-5®
• XR-5B®
• XR-3PW®
• Urethane Materials
• PVC Materials
• PVC/Urethane Blends

Available Colors

22 oz. Vinyl

• Red
• Yellow
• Blue
• Orange
• Green
• Black
• Lime Green

22 oz. EXLON®

• Red
• Yellow

Dimensions

Model	Capacity	Assembled Size	Stored Size	Weight
ATII-100	100 Gallon	3' × 3' × 24" H	38" × 8"	39 lbs.
ATII-250	250 Gallon	4' × 4' × 27" H	50" × 8"	47 lbs.
ATII-500	500 Gallon	Hexagon, 38" sides × 34" H	40" × 10"	61 lbs.
ATII-1000	1,000 Gallon	Hexagon, 52" sides × 34" H	54" × 10"	77 lbs.
ATII-1500	1,500 Gallon	Octagon, 48" sides × 34" H	50" × 10"	85 lbs.
ATII-2000	2,000 Gallon	Octagon, 59" sides × 34" H	61" × 12"	113 lbs.
ATII-2500	2,500 Gallon	Octagon, 63" sides × 34" H	63" × 14"	129 lbs.
ATII-3000	3,000 Gallon	Octagon, 67" sides × 34" H	67" × 14"	137 lbs.

Specifications

• Manufacturer: Husky
• Product Type: Aqua Tank Type II Portable Water Tank
• Frame Material: 6061 Aircraft-Grade Aluminum
• Frame Design: Quick-assemble slip-fit construction
• Assembly: Tool-free assembly with no pins or wires
• Tank Capacities: 100–3,000 Gallons
• Standard Connection: 2" NPT Female Rigid Flange
• Available Liner Materials: 22 oz. Vinyl, EXLON®, XR-5®, XR-5B®, XR-3PW®, Urethanes, PVCs, and PVC/Urethane Blends
• Included Accessories: Storage Bag
• Applications: Firefighting, water shuttle operations, emergency water storage, industrial use, and municipal water supply
