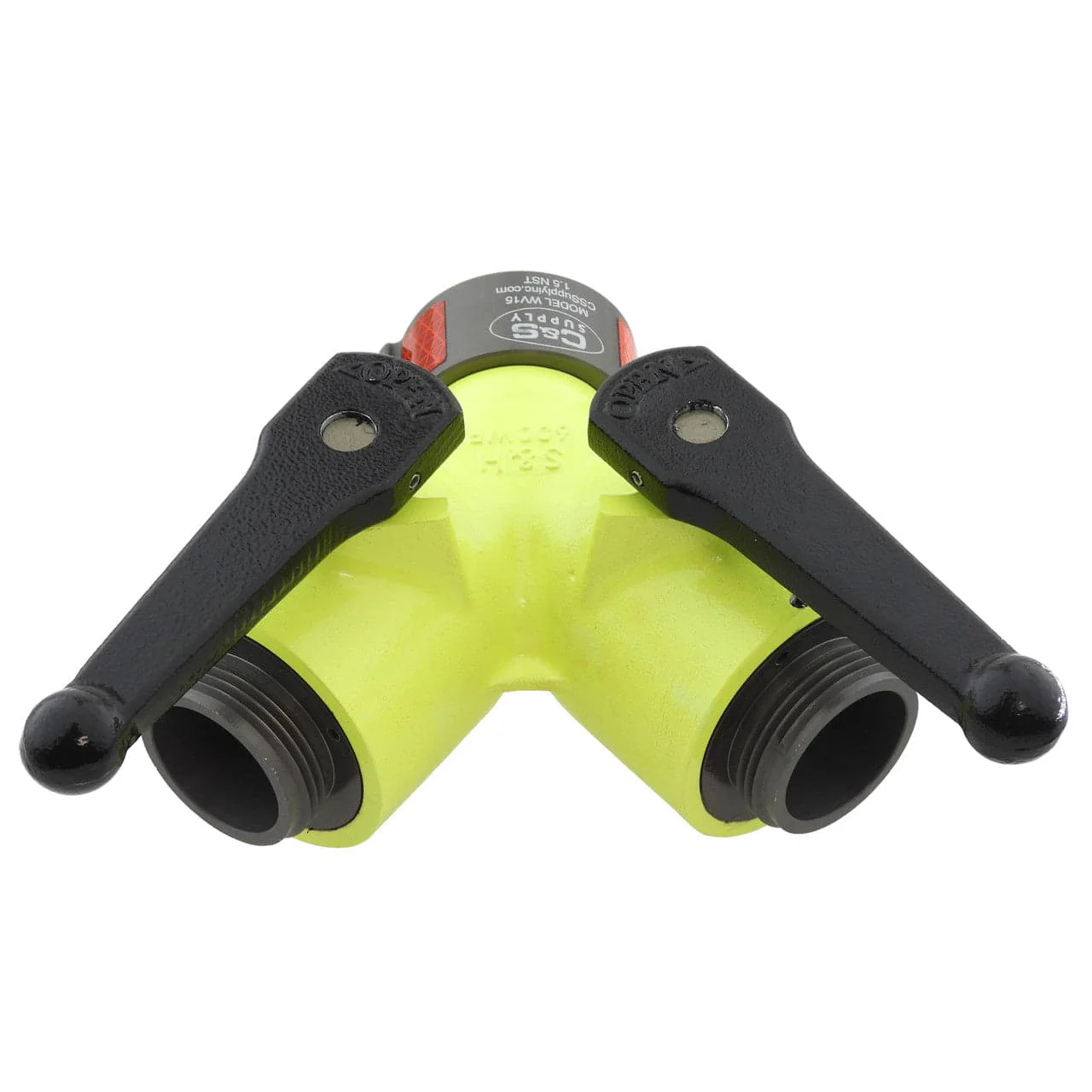

The C&S Supply High Visibility Wildland Wye Valve 1.5" Female x (2) 1.5" Male is a lightweight gated wye designed to split a single 1.5" supply line into two independently controlled 1.5" discharge lines. Finished in high-visibility green with reflective decals, this appliance is easy to locate in low-light conditions, dense vegetation, and demanding wildland firefighting environments.

Constructed from durable 6061-T cast aluminum, the WV15-HIGHVIZ combines lightweight handling with long-lasting performance in the field. Smooth-operating polymer ball valves, front and rear valve seats, and full-port waterways help reduce friction loss and maximize flow efficiency. Proudly made in the USA, this gated wye meets or exceeds USDA Forest Service 5100 Series Specifications and is available in a variety of thread configurations to meet operational requirements.

Features

• High-visibility green finish with reflective decals
• 1.5" female inlet with (2) 1.5" male outlets
• Individual gated outlets for independent flow control
• 6061-T cast aluminum construction
• Lightweight yet durable design
• Smooth-operating polymer ball valves
• Full-port valve design for maximum flow efficiency
• Front and rear valve seats stabilize valve operation
• Smooth waterways help reduce friction loss
• Available in NST (NH) or NPSH thread configurations
• Made in the USA
• Meets or exceeds USDA Forest Service 5100 Series Specifications

Specifications

• Manufacturer: C&S Supply
• Model: WV15-HIGHVIZ
• Product Type: High Visibility Gated Wye Valve
• Inlet Connection: 1.5" Female Swivel NST (NH) or NPSH
• Outlet Connections: (2) 1.5" Male NST (NH) or NPSH
• Material: 6061-T Cast Aluminum
• Finish: High Visibility Green with Reflective Decals
• Valve Type: Polymer Ball Valves
• Weight: 3.20 lbs
• Dimensions: 8" W x 10" H x 5" D
• Application: Wildland Firefighting, Forestry Operations, and Water Flow Control
