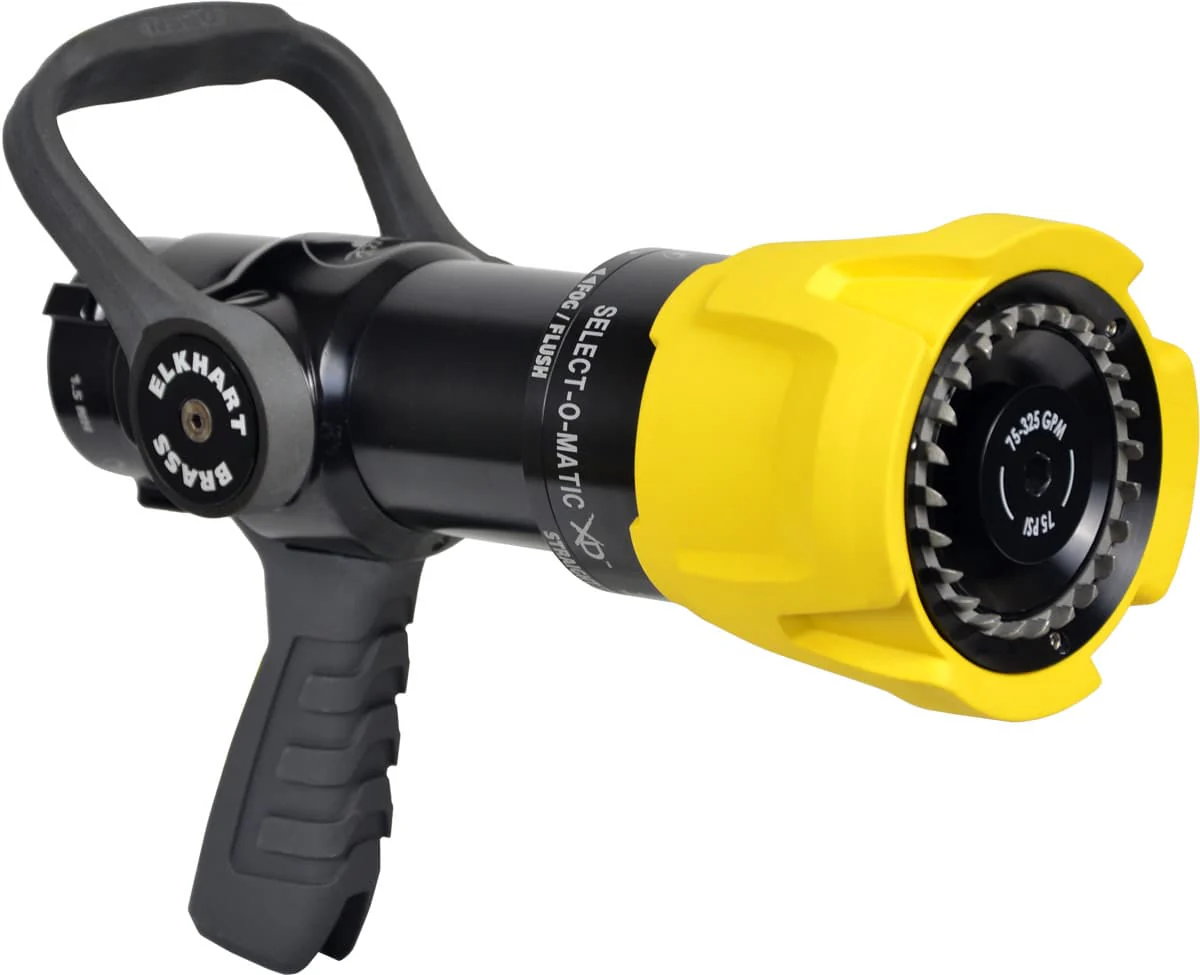

The Select-O-Matic® XD™ Nozzles with Pistol Grip are engineered to automatically adjust to fluctuating water supply conditions, maintaining effective nozzle pressure and delivering a consistent, high-quality fire stream across a wide range of flow rates. Utilizing a patented spring design located outside the waterway, the Select-O-Matic XD generates the necessary back pressure without restricting water flow, ensuring reliable performance and maximum stream reach with virtually no maintenance requirements.

Designed for firefighters who demand versatility and durability, the Select-O-Matic XD is available in multiple flow ranges and operating pressures to meet the needs of structural firefighting, standpipe operations, industrial fire protection, and municipal response. Each nozzle features a comfortable pistol grip for improved control and is available in a variety of color options for department customization.

Features

• Automatic pressure regulation maintains a consistent fire stream across varying flow rates
• Patented external spring design keeps the waterway unobstructed
• Requires zero lubrication and virtually no maintenance
• Maximizes stream reach and stream quality based on available water supply
• Available in multiple flow ranges and operating pressures
• Durable XD™ construction built for demanding firefighting environments
• Comfortable pistol grip provides improved handling and nozzle control
• Available as a complete nozzle or tip-only version for use with XD Shutoffs
• Available in twelve color options for department customization
• Reliable performance throughout the life of the nozzle

Available Colors

• Orange
• Red
• Yellow
• Glow
• Tan
• Pink
• Green
• Blue
• Black
• White
• Gray
• Purple

Available Configurations

Mid/Low-Range
• 1.5" Free Swivel Inlet
• 1.0" Waterway
• 100 PSI (7 BAR)
• Flow Range: 60–125 GPM (230–475 LPM)

Mid-Range
• 1.5" Free Swivel Inlet
• 1-3/8" Waterway

75 PSI (5 BAR)
• Flow Range: 60–200 GPM (230–750 LPM)

100 PSI (7 BAR)
• Flow Range: 60–200 GPM (230–750 LPM)

High-Range – 1.5" Inlet
• 1.5" Free Swivel Inlet
• 1-3/8" Waterway

75 PSI (5 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)

100 PSI (7 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)

High-Range – 2.5" Inlet
• 2.5" Free Swivel Inlet
• 1-3/8" Waterway

75 PSI (5 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)

100 PSI (7 BAR)
• Flow Range: 75–325 GPM (300–1230 LPM)

Specifications

• Manufacturer: Elkhart Brass
• Product Line: Select-O-Matic® XD™
• Product Type: Automatic Handline Nozzle with Pistol Grip
• Pressure Regulation: Automatic via Patented External Spring Design
• Lubrication Requirement: None
• Maintenance Requirement: Minimal
• Available Operating Pressures: 75 PSI (5 BAR) and 100 PSI (7 BAR)
• Inlet Sizes: 1.5" Free Swivel and 2.5" Free Swivel
• Waterway Sizes: 1.0" and 1-3/8"
• Grip Style: Pistol Grip

Applications

• Structural Firefighting
• Municipal Fire Departments
• Standpipe Operations
• High-Rise Firefighting
• Industrial Fire Protection
• Attack Line Operations
