The Confined Space Rescue Rigging Kit provides the essential equipment required for vertical entry and retrieval operations in confined space rescue environments. Designed for professional rescue teams, this comprehensive system includes a primary access line, belay and retrieval system, patient packaging equipment, edge protection, and advanced rigging hardware needed for safe and efficient confined space operations.

Built around industry-leading rescue equipment, the kit features the CMC Triskelion™ Tripod as an artificial high directional, the CMC CSR2 Pulley System™ for efficient 4:1 raising and lowering operations, and the CMC CLUTCH™ by Harken™ for smooth rope management and controlled load handling. Innovative CLUTCH features including a ratcheting rotating sheave, Anti-Panic brake, force-limiting protection, and integrated becket make this system exceptionally effective for technical rescue applications.

Available in 11 mm and 13 mm rope configurations, the kit allows teams to select the rope system best suited to their operational requirements. Kits are organized in dedicated storage bags for efficient transport, deployment, and equipment management.

Features

• Complete confined space rescue rigging system for vertical entry and retrieval operations
• Includes primary access line, belay system, retrieval system, and patient packaging equipment
• CMC Triskelion™ Tripod provides a stable artificial high directional
• CMC CSR2 Pulley System™ enables efficient 4:1 raising and lowering operations
• CMC CLUTCH™ by Harken™ delivers smooth rope control and load management
• Anti-Panic brake, force-limiting protection, and integrated becket enhance operational safety
• Includes patient packaging equipment and victim harness systems
• Dedicated rope bags and equipment packs simplify transport and deployment
• Edge protection components help reduce rope wear and abrasion
• Available in 11 mm and 13 mm rope system configurations

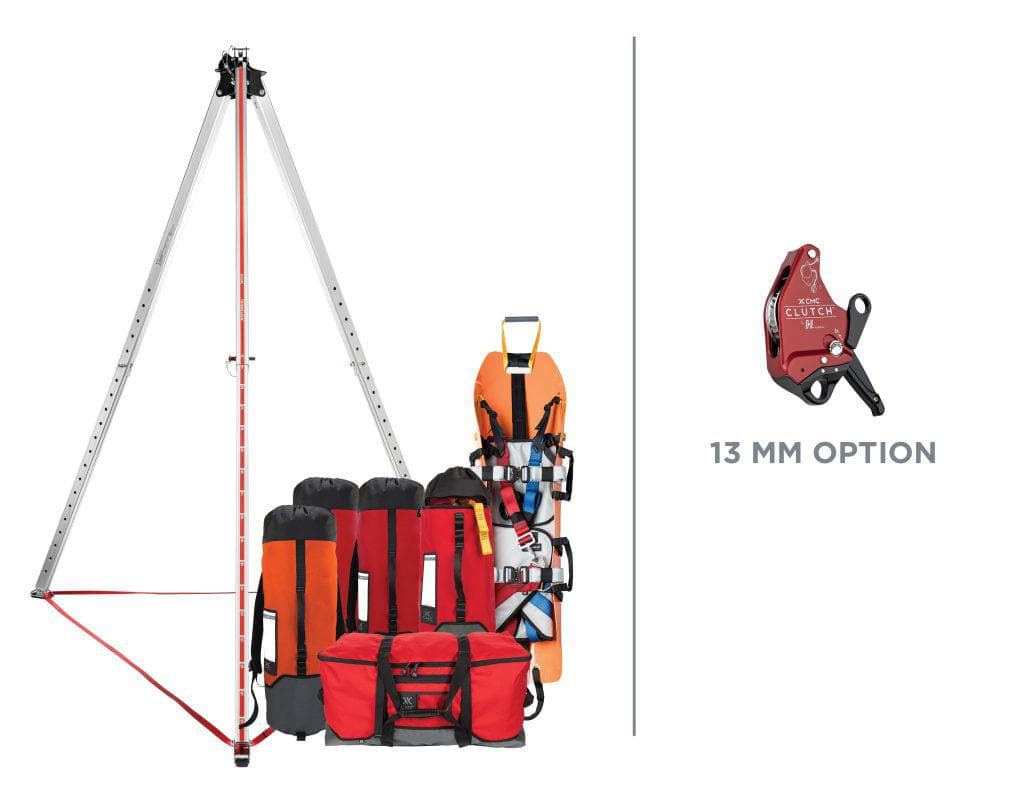

Standard Kit Contents

Bags & Packs
• Shasta Gear Bag – Red
• Medium Rope & Equipment Bag – Red
• #2 Rope Bag – Orange
• #2 Rope Bag – Red

Technical Gear
• CMC Triskelion™ Tripod
• Aluminum Anchor Plate
• ProSeries® Locking Carabiners – Brite (Qty. 18)
• PMP ProSwivel 1.5" Stainless Steel Pulleys (Qty. 2)
• 1" Tubular Webbing – Red (5 x 20 ft)
• 1" Tubular Webbing – Yellow (4 x 12 ft)
• FastLink™ Medium Anchor Strap
• 8 mm Sewn Loop Prusiks, 18" (Qty. 4)
• Confined Space Rescue Manual

Patient Packaging
• Lifesaver Victim Chest Harness
• Lifesaver Victim Harness
• Drag-N-Lift Harness with Bar Kit

Edge Protection
• XL Edge Pads (Qty. 2)
• Medium Anchor Strap Sleeve
• Entry-Ease™ Edge Protection Device

11 mm Kit Includes
• 11 mm CLUTCH™ (Gray)
• CSR2 Pulley System™ – 11 mm
• G11™ Rope, Orange/White – 200 ft
• G11™ Rope, Blue/White – 200 ft
• G11™ Rope, Red/White – 200 ft

13 mm Kit Includes
• 13 mm CLUTCH™ (Red)
• CSR2 Pulley System™ – 12.5 mm
• Static-Pro™ Rope, Orange – 200 ft
• Static-Pro™ Rope, Blue – 200 ft
• Static-Pro™ Rope, Yellow – 200 ft

Specifications

• Product Type: Confined Space Rescue Rigging Kit
• Applications: Confined Space Rescue, Vertical Entry, Retrieval Operations, Technical Rescue
• Rope Configuration Options: 11 mm or 13 mm
• Mechanical Advantage System: CSR2™ 4:1 Raising and Lowering System
• High Directional: CMC Triskelion™ Tripod
• Rope Quantity: Three 200 ft Rope Sections
• Included Rope Length: 600 ft Total
• Storage Bags Included: Yes
• Patient Packaging Equipment Included: Yes
