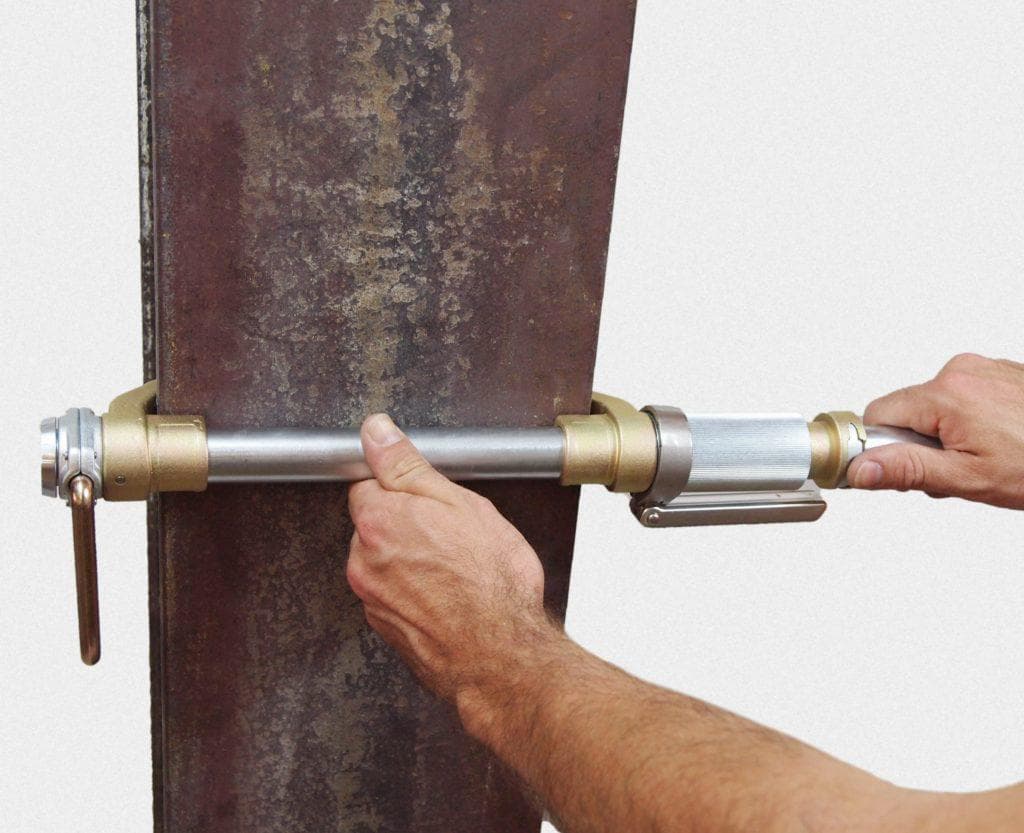

The Vertical Fixed Beam Anchor is a durable and easy-to-install anchorage connector designed to clamp securely onto vertical or horizontal I-beams, creating a reliable fixed anchor point for fall protection, rescue, and work-at-height applications. Its lightweight aluminum construction provides strength without excessive weight, while the turn-dial and cam adjustment system allows for fast installation and removal in the field.

Designed for use on beam flanges ranging from 4 to 14 inches wide, this anchor features a stationary connection point that helps maintain a secure working position. Built to meet ANSI and OSHA requirements, the Vertical Fixed Beam Anchor delivers dependable performance for industrial, construction, maintenance, and rescue operations.

Features

• Designed to clamp securely onto vertical or horizontal I-beams
• Provides a safe, stationary anchor point for fall protection applications
• Fits beam flange widths from 4 in to 14 in
• Lightweight yet durable aluminum construction
• Turn-dial and cam adjustment system for quick installation and removal
• Zinc-plated steel swivel D-ring allows secure attachment
• Suitable for industrial, construction, maintenance, and rescue work
• Meets ANSI Z359.18-2017 requirements
• Complies with applicable OSHA standards
• Maximum user capacity of 310 lb when used as a single-point anchorage

Specifications

• Product Name: Vertical Fixed Beam Anchor
• Product Number: Beam, Vertical/Fixed Anchor, 5K, 4"-14"
• Weight: 2.8 kg (6.1 lb)
• Static Tensile Strength: 5,000 lbf (22.2 kN)
• Breaking Strength: 5,000 lbf / 22 kN
• Beam Flange Width Range: 4 in – 14 in
• Beam Flange Thickness Range: 0.25 in – 1.25 in
• Maximum Capacity: 310 lb
• Product Length: 27.5 in
• Product Width: 3.6 in
• Shipping Length: 27.5 in
• Shipping Width: 3.6 in
• Shipping Height: 3.6 in
• Standard: ANSI Z359.18-2017 Type A
• OSHA Compliance: OSHA Standards

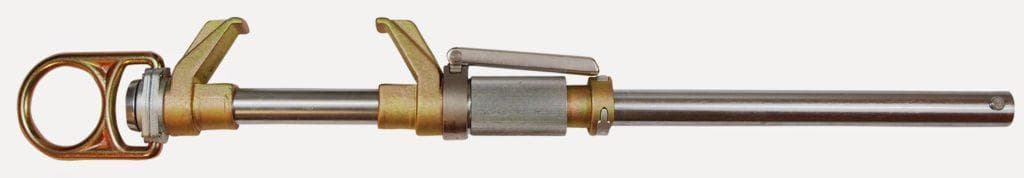

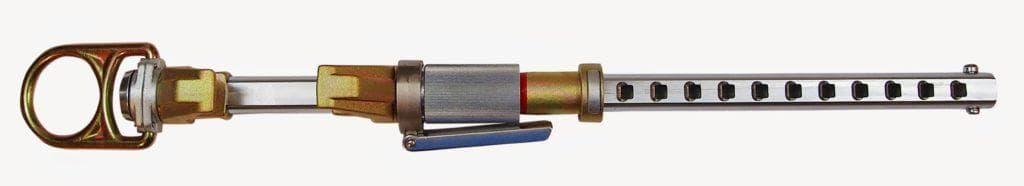

Components

• Zinc-Plated Steel Swivel D-Ring
• Zinc-Plated Steel Support Bar
• Zinc-Plated Steel Flange Hooks
• Stainless Steel D-Ring Mount
