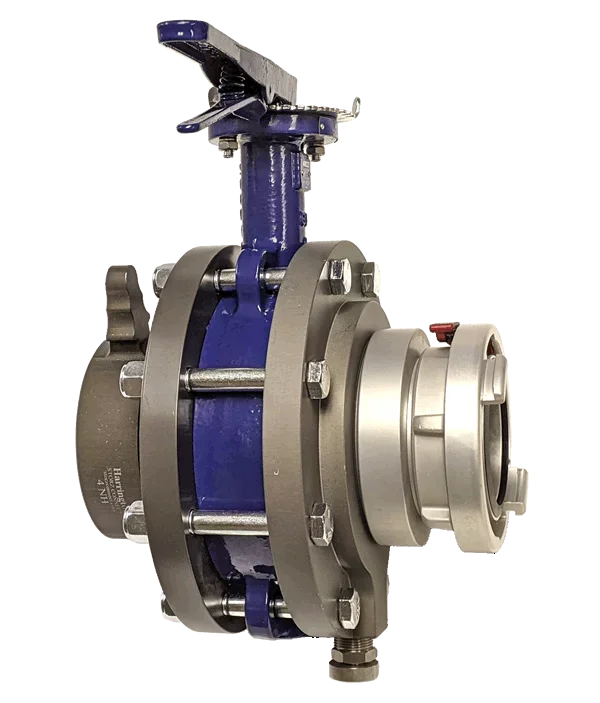

The Butterfly Valve – Storz x NH Female Swivel Long Handle w/ Handwheel is designed to provide dependable flow control and positive shutoff for large-diameter fire service water supply systems. Featuring a bubble-tight sealing design and a handwheel-operated gear mechanism, this valve allows for controlled opening and closing to help reduce water hammer and provide smooth flow management during drafting, relay pumping, tanker operations, and large-volume water movement.

Constructed with a rugged cast iron body, aluminum bronze disc, stainless steel stem, and EPDM rubber liner, this valve is built for long service life in demanding fire service environments. The bi-directional design allows installation in either flow direction, while the body remains isolated from the water flow stream to minimize wear and corrosion. The handwheel operator features a fold-down knob for convenient operation and storage.

Features

• Bubble-tight shutoff design
• Storz x NH female swivel long handle configuration
• Handwheel gear operator for controlled opening and closing
• Helps reduce water hammer during valve operation
• Bi-directional flow design
• EPDM rubber liner for reliable sealing performance
• Aluminum bronze disc for durability and corrosion resistance
• Cast iron body isolated from the flow stream
• Bronze shaft bushings for smooth operation
• Stainless steel stem construction
• Stainless steel screw drain included
• Designed for large-diameter fire service water supply operations

Specifications

• Manufacturer: Harrington
• Product Type: Butterfly Valve
• Configuration: Storz x NH Female Swivel Long Handle with Handwheel
• Operating Style: Handwheel Gear Operator
• Working Pressure: 200 PSI
• Body Material: Cast Iron
• Disc Material: Aluminum Bronze
• Liner Material: EPDM Rubber
• Stem Material: Stainless Steel
• Shaft Bushings: Bronze
• Drain: Stainless Steel Screw Drain
• Flow Direction: Bi-Directional

Available Models

• HSBFVH-50-45NHLH — 5" Storz x 4.5" NH Female Swivel Long Handle with Handwheel
• HSBFVH-50-50NHLH — 5" Storz x 5" NH Female Swivel Long Handle with Handwheel
• HSBFVH-50-60NHLH — 5" Storz x 6" NH Female Swivel Long Handle with Handwheel
