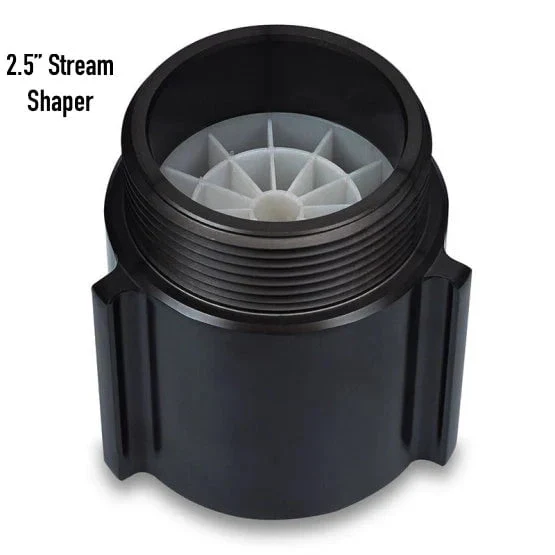

The 2-1/2" Stream Shaper for Monitor Nozzle is designed to improve water stream quality by conditioning and strengthening water flow before it exits the nozzle. By reducing turbulence and creating a more uniform flow pattern, the stream shaper helps maximize stream reach, effectiveness, and overall monitor performance during firefighting operations.

Constructed from durable alloy materials, this stream shaper features replaceable internal vanes for easy maintenance and long service life. Its 2-1/2" female inlet and 2-1/2" male outlet configuration allows for simple integration with compatible monitor nozzles and master stream equipment.

Features

• Strengthens and conditions water flow for improved stream performance
• Helps reduce turbulence and improve stream quality
• Enhances stream reach and effectiveness
• Replaceable internal vanes for easy repair and maintenance
• Durable alloy construction
• Simple installation between monitor and nozzle
• Designed for use with compatible monitor nozzles and master stream equipment

Specifications

• Product Type: Stream Shaper
• Inlet Connection: 2-1/2" (65 mm) Female NH
• Outlet Connection: 2-1/2" (65 mm) Male NH
• Material: Alloy
• Length: 4.2" (107 mm)
• Weight: 2.2 lbs. (1 kg)
• Application: Monitor Nozzle and Master Stream Water Flow Conditioning
